Description

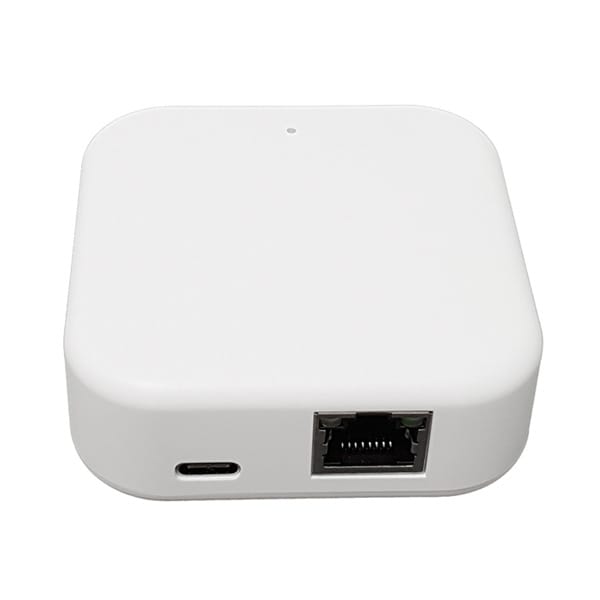

The Gateway PoE shares all the functions and operational ability of the Gateway Wi-Fi. In this model there is a different method of connection with the router, which connects via a RJ45 cable. The cable provides network connection and electric power to the gateway, allowing simpler and stabler installations.
Requires the router/server to be PoE in order to supply power to the gateway.
- Bluetooth range: up to 10m
- Network: Ethernet-RJ45
- Connection: USB Type C
- Power: 5V/500mA DC
- Dimensions: 70 x 70 x 26 mm
Operation
The online OMNITEC system operates by double connectivity: Bluetooth and Wi-Fi.
Devices – Administrator
Electronic locks and access controls send the information via Bluetooth to the Gateway.
The Gateway, connected to a hotel Wi-Fi network, sends all the information received to the server to make it available for the administrator.
Administrator – Devices
The online functions the administrator executes remotely from their PC or Smartphone are transmitted from the server to the Gateway via Wi-Fi, and channelled via Bluetooth to the locks and access controls.
When the administrator Smartphone and the lock or access control to be managed are within the Bluetooth range, they communicate directly via Bluetooth and transmit the information without using the Gateway or Wi-Fi.
To implement an online system, a Wi-Fi network, locks and/or access controls with Bluetooth connectivity from Omnitec are essential.
