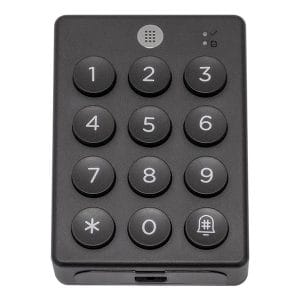

Opening by Numerical Code via Bluetooth

Unlock a world of convenience with our wireless keypad, perfect for Bluetooth devices that lack a built-in keypad.

Designed for electronic cylinder locks, access control systems, and Bluetooth-enabled furniture locks, this keypad allows secure entry via numerical code.
No wiring, no installation—just simple standalone functionality.

Effortless Installation

• No wiring or technical setup required – simply mount to the wall
• Designed for seamless pairing with:
• X-RP2 electronic cylinder
• Opak access control system
• Lockerfy BLE locks for lockers and furniture

Smart Security Features

• Vandal-resistant design: Tampering with cables or the keypad PCB won’t compromise device security
• 1-to-1 pairing: Each keypad links to a single device for added protection
• Anti-spy technology: Supports up to 16 digits, blending the opening code within random numbers to deter code observation
• Continuity safeguard: If a keypad is stolen or damaged, another can be linked without disrupting access codes

Technical Specs

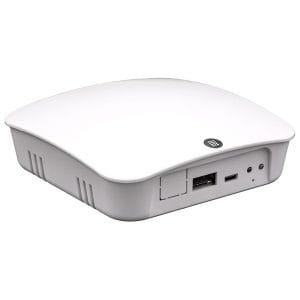

Designed for premises in remote areas without a router/server connection. The 4G Gateway uses a SIM card to communicate with a server via 4G connection to send all the information from locks in real time.

• Bluetooth range: up to 10m
• Network: 4G
• Connection: Micro USB
• Power: 5V/500mA DC
• Dimensions: 110 x 110 x 35 mm

Operation

The online OMNITEC system operates by double connectivity: Bluetooth and Wi-Fi.

Devices - Administrator

The online OMNITEC system operates by double connectivity: Bluetooth and Wi-Fi.

Administrator - Devices

The online functions the administrator executes remotely from their PC or Smartphone are transmitted from the server to the Gateway via Wi-Fi, and channelled via Bluetooth to the locks and access controls.
When the administrator Smartphone and the lock or access control to be managed are within the Bluetooth range, they communicate directly via Bluetooth and transmit the information without using the Gateway or Wi-Fi.

To implement an online system, a Wi-Fi network, locks and/or access controls with Bluetooth connectivity from Omnitec are essential.

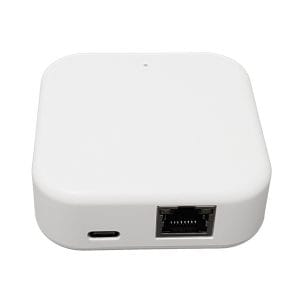

The Omnitec PoE Gateway offers the same advanced features and performance as the standard Omnitec Gateway, with the added benefit of Power over Ethernet (PoE) connectivity. This model connects directly to the router using an RJ45 Ethernet cable, which delivers both network access and electrical power. The result is a cleaner, more reliable installation with fewer cables and improved long‑term stability.
Please note: the router or server must support PoE to power the gateway.

Technical Specifications

• Bluetooth range: up to 10m
• Network: Ethernet (RJ45)
• Connection: USB Type‑C
• Power: 5V / 500mA DC
• Dimensions: 70 × 70 × 26 mm

How the System Works

The Omnitec online system uses dual connectivity through Bluetooth and Ethernet‑powered communication, ensuring fast, secure and efficient interaction between access devices and administrators.

Device → Administrator Communication

Electronic locks and access control units send data via Bluetooth to the PoE Gateway.
The Gateway, connected to the hotel’s network, forwards this information to the server, making it instantly available to the system administrator.

Administrator → Device Communication

Remote actions performed by the administrator, whether from a PC or smartphone, are transmitted from the server to the Gateway via the Ethernet network. The Gateway then relays these commands to the locks and access controls using Bluetooth.
When the administrator’s smartphone is within Bluetooth range of a lock or access control device, communication occurs directly, without using the Gateway.

System Requirements

To implement an online access management system, you will need

• A stable Ethernet network.
• Omnitec locks and/or access control devices with Bluetooth connectivity
• An Omnitec PoE

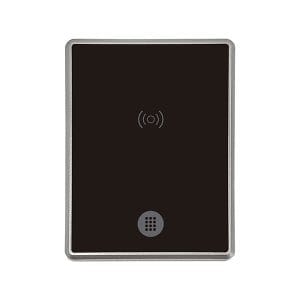

Lift Access Control Integration
Seamless security for hotel lift management
Omnitec's lift access control system is designed to integrate effortlessly into your lift management panel, enhancing the security and operational control of your hotel environment.

• Controlled Access for Guests and Staff
  Access is limited based on card credentials, allowing guests and employees to reach only the floors you’ve authorised.
• Customisable Permissions
  Permissions can be configured to restrict overall lift use or target specific floors, offering flexible and precise control.
• Offline Operation
  The system functions entirely offline, ensuring uninterrupted security even without a network connection.
• Discreet and Efficient Installation
  Featuring a modern, ultra-slim design (60 × 80 × 7.5 mm), the reader is installed directly into the lift panel with minimal disruption.

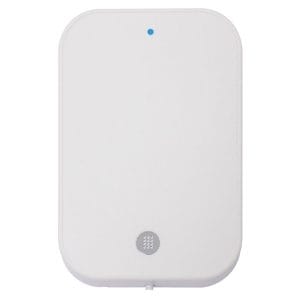

Online electronic locks and access controls
ONLINE CONNECTIVITY
Remote maintenance and management of electronic locks and Bluetooth access controls. Control from the Reception PC and via Smartphone
Online functions
• Online Audit Trail
• Remote opening from Reception or via administrator smartphone
• Battery level control
• Access credential management
• Date / Time Update
• Opening alerts
Features
• Bluetooth range: up to 10m
• Network: 2.4G Wi-Fi
• EEE standard: 802.11 b/g/n
• Connection: USB Type C
• Power: 5V/500mA DC
• Dimensions: 70 x 104 x 18 mm
Operation
The online OMNITEC system operates by double connectivity: Bluetooth and Wi-Fi.
Devices → Administrator
Electronic locks and access controls send the information via Bluetooth to the Gateway.
The Gateway, connected to a hotel Wi-Fi network, sends all the information received to the server to make it available for the administrator.
Administrator → Devices
The online functions the administrator executes remotely from their PC or Smartphone are transmitted from the server to the Gateway via Wi-Fi, and channelled via Bluetooth to the locks and access controls.
When the administrator Smartphone and the lock or access control to be managed are within the Bluetooth range, they communicate directly via Bluetooth and transmit the information without using the Gateway or Wi-Fi.

To implement an online system, a Wi-Fi network, locks and/or access controls with Bluetooth connectivity from Omnitec are essential.
Compatibility
The Gateway is compatible with all OMNITEC Bluetooth locks, access controls and safes.
